Solar Panel Setup: The Easiest Step-by-Step Guide

To set up your first solar panel system, you will need to buy solar panels, batteries, a charge controller, an inverter, and cables to connect everything together. Next, you will need to connect these parts in the right order, making sure they are installed and set up correctly so they can work well together.

In this guide, we will show you the exact process of setting up a basic solar panel system. We will discuss everything from choosing the right equipment to connecting these components together.

So, let’s get started.

Step 1: Getting the Materials and Tools

Before you can begin assembling your DIY solar panel system, you’ll need to gather the essential materials and tools.

Here’s a list of items you will require to complete this project:

  1. A solar panel
  2. A 12V battery
  3. A 10A, 12V DC charge controller with a built-in inverter
  4. Cabling and connectors to connect the solar panel and the battery to the charge controller
components for the solar panel setup
Main components of the solar system.

In addition, you will also need:

  1. A plier
  2. A wire cutter
  3. Screwdrivers
  4. A multimeter (optional)
plier, wire cutter, screwdrivers, and multimeter tools on table
Required tools for setting up the solar system at home.

Before you start working, make sure you have a safe and comfortable workspace for assembling and testing your solar panel system. Make sure you have ample space and proper lighting.

Step 2: Understand the basic wiring setup

It is important to first understand how everything connects together in a basic solar system. The three main components in the solar panel setup are the solar panel, the charge controller, and the battery. The basic wiring setup of how these are connected is shown below.

solar panel setup wiring
Basic wiring diagram of the solar panel setup.

Step 3: Connecting and Wiring Solar Panels

Most solar systems use more than one solar panel to generate enough electricity to meet the power requirement.

Here, we’ll walk you through the steps of installing a single-panel solar system. You may want to use multiple panels in your own system for two reasons, though.

  1. To adjust the voltage and current of your solar panels to match the specifications of your selected charge controller.
  2. To increase the overall power output of your solar system.

Multiple solar panels in a solar system can be connected together in two ways:

1. Series connection

In a series connection, the solar panels are connected end-to-end by connecting the positive terminal of one panel connected to the negative terminal of the next panel. This increases the system’s voltage but keeps the current constant.

This type of connection is great for systems that need higher voltage, those with MPPT charge controllers, or setups with wiring that covers long distances.

2. Parallel connection

In a parallel connection, the solar panels are connected side-by-side. We do this by connecting the positive terminals together for all panels. Similarly, we connect all the negative terminals together.

This method keeps the voltage the same while bumping up the current. Parallel connections are made to increase the overall power output of a solar system while ensuring that your system voltage matches your charge controller.

solar panels series and parallel wiring
Series and parallel solar panel connections.

You can also combine series and parallel connections to achieve the desired voltage and power for your system. To calculate the right size of the solar system for your needs, check out our step-by-step guide.

Wiring Solar Panels

Here are some important points to keep in mind when wiring solar panels:

  1. Pick the right wire: When selecting solar wires, you’ll want to choose the right wire size to minimize power loss and keep your system safe. Use an online calculator to figure out the wire size based on your solar panel system’s current and voltage requirements.Go for UV-resistant, weatherproof wires that are designed for solar applications, especially for outdoor installations.
  2. Install and utilize proper connectors: Most solar panels come with pre-installed MC4 connectors, which make it super easy and secure to connect. If your panels don’t have connectors, you can attach them manually.

    Male and Female MC4 Connectors
    Male and Female MC4 Connectors.
  3. Connect the panels with fuses: Place the solar panel face-down on a cushioned surface to avoid scratches and easily access the cables. Then, locate the positive solar cable on your panel, which is marked by a plus sign or a male MC4 connector with a red rubber ring. Next, connect the positive solar panel cable to the MC4 inline fuse. After that, connect the charge controller adapter cable, the positive solar cable, and the positive solar extension cable to each other. The process for the solar negative cable is pretty much the same, except you won’t need a fuse.
  4. Properly secure the connections: Make sure the connections are secure and watertight to avoid disconnection and potential hazards.

Step 4: Connecting Solar Panels to the Charge Controller

Once your solar panels are connected in the designed solar array, it’s time to connect them to the charge controller.

The charge controller is an essential component of the solar system as it regulates the current and voltage going to the battery. This ensures that the battery is charged safely and efficiently.

Very important: You should never connect the solar panels directly to the battery.

You can easily connect your solar panel to the charge controller by following these steps:

  1. Identify input terminals on the charge controller: Locate the input terminals on the charge controller, which are usually marked as “PV”, “Solar”, or with a symbol of a PV panel. The positive and negative terminals are marked with corresponding positive and negative symbols.

    solar charge controller
    Input terminals on the solar charge controller.
  2. Connect cables to the solar panel: Connect appropriate cables with MC4 connectors to the positive and negative terminals of your solar panel.

    Connecting MC4 connector cables to solar panel
    Connecting cables to the solar panel.
  3. Connect the positive cable to the charge controller: Strip the free ends of the cables connected to the solar panel. Attach the positive solar cable from the solar panel to the positive input terminal on the charge controller. Ensure the connection is secure and tight.

    Connecting cables to solar charge controller
    Connecting cables to the charge controller.
  4. Connect the negative cable to the charge controller: Similarly, attach the negative solar cable from the solar panel to the negative input terminal on the charge controller. Again, make sure the connection is secure and tight.

Step 5: Connecting the Battery to the Charge Controller

The next step is to connect your battery and charge controller together.

Each charge controller has a set battery voltage it can work with. For small-scale residential systems, this can be either 12V, 24V, or 48V. Depending on your selected charge controller and battery, you may need to connect several batteries in series to get the required voltage before you connect the batteries to the charge controller.

You may also wish to connect batteries in parallel to increase the overall storage capacity. Use an online calculator to calculate the required size of your battery pack. You can use lithium batteries or simple lead-acid batteries to make your battery bank.

You can connect your battery bank to the charge controller in three simple steps:

  1. Identify the battery terminals: Locate the positive and negative battery terminals on the charge controller. Also, identify the positive and negative terminals on the battery.

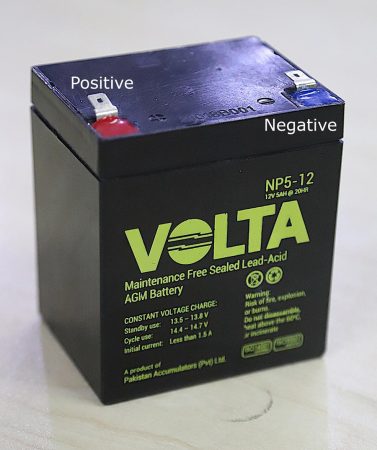

    Terminals on Volta lead acid battery
    Positive and negative battery terminals.
  2. Prepare battery cables: Use appropriately sized battery cables that are suitable for the voltage and current of your battery bank.
  3. Connect positive and negative cables: Attach one end of the positive and negative battery cables to the positive and negative terminals of your battery, respectively. Connect the other ends to the corresponding terminals of the charge controller.
    Connecting solar panel cables to battery
    Connecting cables to the battery.

    solar panel connected to charge controller and battery
    Completed system.

Step 6: Connecting the Charge Controller/Inverter to the AC Load

Next, link the AC output of your charge controller to your electrical panel. This step typically involves wiring the inverter’s output to a dedicated circuit breaker within the panel. This helps in distributing the power to various loads in your home.

However, take note that if you have a grid-tied solar energy system, you may need to install a bi-directional meter to measure both energy consumption from and exported to the grid.

Very Important: Consult with a licensed electrician to ensure that your solar installation complies with local regulations and utility requirements.

Step 7: Ensure Grounding and Surge Protection

A proper grounding and surge protection system is vital for the safety and longevity of your solar energy system.

Follow these guidelines to establish a robust grounding and surge protection system:

  • Equipment Grounding: Ground all metallic components of your solar panel system, including solar panel frames, mounting structures, power inverters, and battery enclosures. Utilize appropriately sized grounding conductors to ensure a low-resistance connection to the ground.
  • System Grounding: Establish a grounding electrode system using ground rods, plates, or rings connected to your system’s grounding conductor. Ensure that the grounding electrode has a low resistance to earth (typically below 25 ohms) and complies with local regulations.Ground the negative terminal of your battery pack or the grounding point of your solar charge controller. Make sure you follow the manufacturer’s recommendations while doing this.
  • Surge Protection Devices (SPDs): Install SPDs at critical points in your solar panel system, such as the solar array, inverter, and battery bank. SPDs protect your system components from voltage surges caused by lightning strikes, grid fluctuations, or other transient events.

Step 8: Install a Monitoring System

A monitoring system allows you to track your solar power system’s performance, receive notifications for specific events, and store historical performance data for analysis. Consider these factors when selecting and installing a monitoring system:

  • Compatibility: Ensure the monitoring system is compatible with your inverter, solar charge controller, and battery bank. Many manufacturers offer proprietary monitoring solutions that seamlessly integrate with their products.
  • Data Logging: Choose a monitoring system that logs essential data, such as solar panel output, battery voltage and state of charge, inverter output, and energy consumption.
  • Remote Access: Opt for a monitoring system that provides remote access through a web portal or mobile app. This allows you to monitor your solar energy system’s performance and receive notifications from anywhere with an internet connection.
  • Installation: Install the monitoring system according to the manufacturer’s guidelines. This typically involves connecting the monitoring device to your power inverter or charge controller, connecting the device to your home network, and configuring the software settings.

Step 9: Test Your System

Before activating your solar power system, it’s crucial to test its functionality and safety. Follow these steps to perform a thorough system test:

  • Visual Inspection: Examine all components, cables, and connections within your solar panel system for any visible damage, corrosion, or improper installation.
  • Voltage and Polarity Check: Perform voltage and polarity checks on your solar array, battery bank, and power inverter using a multimeter. Ensure the values match the specifications and are consistent with your solar energy system’s design.
  • Continuity and Insulation Resistance Test: Perform a continuity test on all conductors to ensure there are no open circuits or loose connections. Additionally, check the insulation resistance between the conductors and the system’s grounding to ensure there are no short circuits or leakage currents.
  • Inverter Functionality Test: Check its output AC voltage, frequency, and waveform with a multimeter. Verify that these parameters align with the inverter’s specifications and the requirements of your electrical loads.
