Build Your Perfect Van Solar Power System (Without the Costly Mistakes)

Transform your van into a self-sufficient mobile haven with a custom solar power system that delivers reliable, renewable energy wherever the road takes you. From weekend warriors to full-time nomads, installing solar panels on your van opens up endless possibilities for off-grid living while significantly reducing your environmental impact. Whether you’re powering a simple laptop and lights or running a complete mobile workspace, a properly designed van solar setup can generate 100-600 watts of clean energy daily – enough to maintain modern comforts without compromising your adventurous lifestyle.

Today’s van solar technologies have evolved dramatically, making DIY installation more accessible and affordable than ever. With compact, efficient panels, smart charge controllers, and lithium batteries that last up to 10 years, you can build a system that perfectly matches your power needs and budget. This guide will walk you through everything from calculating your energy requirements to selecting components and completing a professional-grade installation. Join the growing community of van life enthusiasts who have embraced solar power as their ticket to true freedom on the road.

Essential Components of a Van Solar Setup

Solar Panels: Choosing the Right Type and Size

When it comes to solar panel setup basics, you’ll need to choose between rigid and flexible panels for your van. Rigid panels are more durable and efficient, typically converting 18-22% of sunlight into electricity. They’re perfect if you have a flat roof and don’t mind permanent mounting. I installed these on my first van build and loved their reliability.

Flexible panels, while slightly less efficient at 15-18%, offer advantages for curved roofs and stealth camping. They’re lighter and can bend up to 30 degrees, but tend to have a shorter lifespan due to heat buildup. Just remember, they need proper ventilation underneath to prevent overheating.

For sizing, start by calculating your daily power needs in watt-hours. As a rule of thumb, multiply your daily usage by 1.3 to account for system inefficiencies. For example, if you need 100Ah per day at 12V (1,200Wh), aim for about 300-400 watts of solar panels. I always recommend going slightly bigger than your calculations suggest – you’ll appreciate the extra power on cloudy days.

Battery Selection and Storage

Choosing the right batteries for your van’s solar setup is crucial for reliable power storage. From my experience, lithium iron phosphate (LiFePO4) batteries are currently the gold standard for van builds, offering the best balance of weight, lifespan, and safety. While they’re pricier upfront, their 10+ year lifespan makes them cost-effective in the long run.

For capacity planning, start by listing your daily power needs in amp-hours (Ah). I typically recommend a minimum of 200Ah for basic setups, though many vanlifers opt for 300-400Ah to accommodate higher power demands and cloudy days. Remember to factor in a 20% buffer to avoid completely draining your batteries.

When storing batteries, keep them in a well-ventilated space away from extreme temperatures. I learned the hard way that heat can significantly reduce battery life – aim for an environment between 50-85°F (10-29°C). Consider installing a battery monitor to track charge levels and overall health. For winter vanlife, insulating your battery compartment can help maintain optimal performance in cold conditions.

Pro tip: Always buy batteries from the same batch and manufacturer when connecting multiple units in parallel to ensure balanced charging and longevity.

Charge Controllers and Inverters

Two essential components manage your van’s solar power system: charge controllers and inverters. The charge controller regulates voltage from your solar panels to safely charge your batteries, preventing overcharging and extending battery life. I recommend using an MPPT (Maximum Power Point Tracking) controller for optimal efficiency – it can squeeze up to 30% more power from your panels compared to basic PWM controllers.

Your inverter converts the 12V DC power from batteries into 120V AC power for running household appliances. Pure sine wave inverters are worth the extra investment for sensitive electronics, while modified sine wave inverters work fine for basic loads like lights and fans. When sizing your inverter, add up the wattage of all devices you’ll run simultaneously and add a 20% buffer for safety. Remember that bigger isn’t always better – inverters are most efficient when running at 50-80% of their rated capacity.

Planning Your System Layout

Power Requirements Calculation

Calculating your van’s power requirements is a crucial first step in designing DIY solar power systems. I learned this the hard way when I initially underestimated my power needs and had to upgrade my system later.

Start by listing all your electrical devices and their wattage ratings. Common van appliances include:
– Refrigerator: 40-60W
– LED lights: 2-5W each
– Laptop charger: 45-90W
– Phone charger: 5-20W
– Fan: 10-25W
– Water pump: 60-100W

Multiply each device’s wattage by the number of hours you plan to use it daily. For example, a 50W refrigerator running for 24 hours uses 1,200 watt-hours (Wh) per day. Add up all your daily watt-hours to get your total power requirement.

Remember to account for efficiency losses (typically 20%) and include a safety margin (25-30%) for unexpected usage or cloudy days. If your calculations show you need 1,200Wh daily, aim for a system capacity of around 1,800Wh to ensure reliable power.

Pro tip: Track your current power usage for a week using a basic power meter. This real-world data will help you make more accurate calculations and avoid the common mistake of undersizing your system.

Space and Weight Considerations

When planning your van’s solar power system, smart space utilization and weight distribution are crucial factors that can make or break your setup. As someone who’s helped countless van owners with their installations, I’ve learned that every inch of space counts.

Start by creating a detailed layout plan of your van’s roof and interior. The roof needs to accommodate your solar panels while leaving room for essential components like roof vents and antennas. Inside, look for unused vertical spaces for mounting components – many forget that walls can be valuable real estate for equipment.

Your batteries are typically the heaviest components, so position them as low as possible and close to the van’s centerline. This helps maintain vehicle stability and handling. I recommend placing them under beds or seating areas to maximize living space. The inverter should be installed close to the batteries to minimize voltage drop, but ensure it has adequate ventilation.

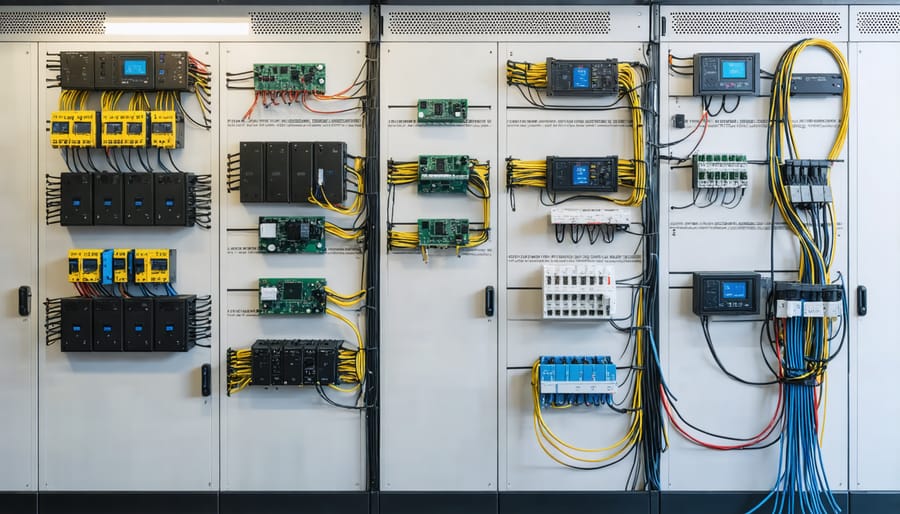

For charge controllers and fuse boxes, consider mounting them at eye level for easy monitoring and maintenance. Create a dedicated “electrical cabinet” if possible – this keeps components organized and protected while making future modifications easier.

Remember to account for wire routing paths during planning. Proper cable management not only looks cleaner but also prevents potential hazards and makes troubleshooting simpler. Leave some extra space for future expansion – you’ll thank yourself later when you want to add more capacity.

Wiring and Connection Planning

When wiring your solar system, proper planning is essential for both safety and efficiency. Start by creating a detailed wiring diagram that maps out the connections between your solar panels, charge controller, batteries, and inverter. This visual guide will serve as your roadmap during installation and help prevent costly mistakes.

Always use properly sized wires based on your system’s amperage and distance. A good rule of thumb is to keep wire runs as short as possible to minimize voltage drop. For most van installations, 8 or 10 AWG wire works well for panel-to-controller connections, while battery cables typically require 2/0 or 4/0 AWG depending on your system size.

Remember to incorporate proper fusing at all major connection points. Install fuses or breakers as close to the battery as possible, and include additional protection for your charge controller and inverter circuits. Consider using battery terminal fuse blocks to keep your connections organized and protected.

Color-coding your wires makes troubleshooting easier down the road – red for positive, black for negative is standard practice. Use heat-shrink tubing or electrical tape to protect connections from moisture and vibration. When routing wires, avoid sharp edges and high-heat areas, and secure them properly to prevent movement while driving.

Finally, create a detailed wiring log documenting your connections and fuse sizes. This documentation will prove invaluable for future maintenance or modifications to your system.

Installation Best Practices

Mounting Solar Panels Securely

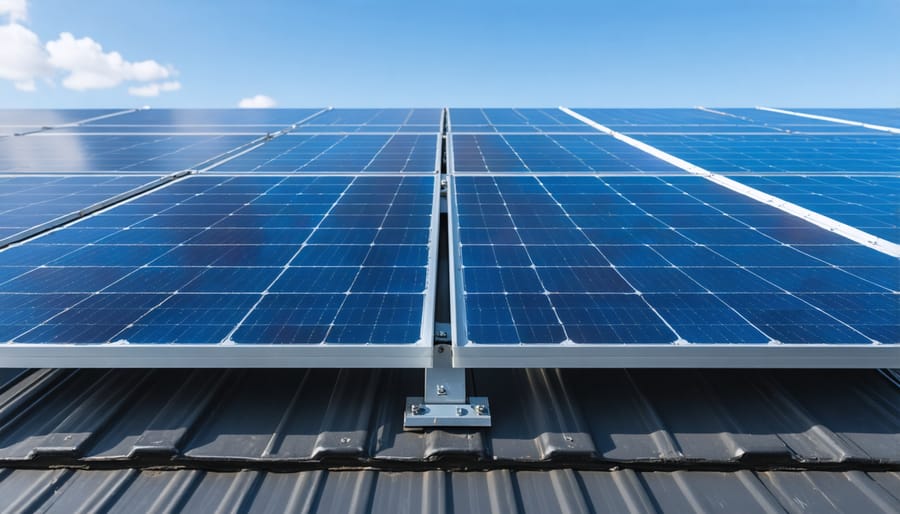

Securely mounting your solar panels is crucial for both safety and optimal performance. During my years of van builds, I’ve learned that a solid mounting system prevents wind damage and ensures your panels stay put through all weather conditions.

Start by thoroughly cleaning your van’s roof and identifying the strongest mounting points. Most vans have structural ribs that provide ideal attachment locations. Use 3M VHB tape or similar industrial-strength adhesive along with mounting brackets for a belt-and-suspenders approach. The adhesive creates a waterproof seal while the brackets provide mechanical strength.

For bracket installation, apply a generous bead of lap sealant around each mounting point to prevent water intrusion. Use stainless steel hardware to prevent rust, and always install rubber gaskets between the mounting brackets and your roof to prevent metal-on-metal contact that could cause corrosion.

If your van has a curved roof, consider using adjustable mounting brackets that can accommodate the curve while keeping panels level. Space your mounting points evenly, typically every 2-3 feet, to distribute weight and wind load properly.

When routing cables through the roof, use weatherproof cable entry glands and apply additional sealant around these penetrations. Create a small loop in the cables near the entry point to prevent water from running down the cables into your van.

Remember to check your mounting hardware’s torque specifications regularly, especially after the first few hundred miles of driving. Temperature changes and vehicle vibration can cause fasteners to loosen over time. A quick monthly inspection can prevent costly repairs down the road.

Battery Installation and Ventilation

When it comes to battery installation in your van, safety should be your top priority. I learned this firsthand when helping a fellow van-lifer who had incorrectly installed their batteries in an enclosed space – not a situation you want to find yourself in!

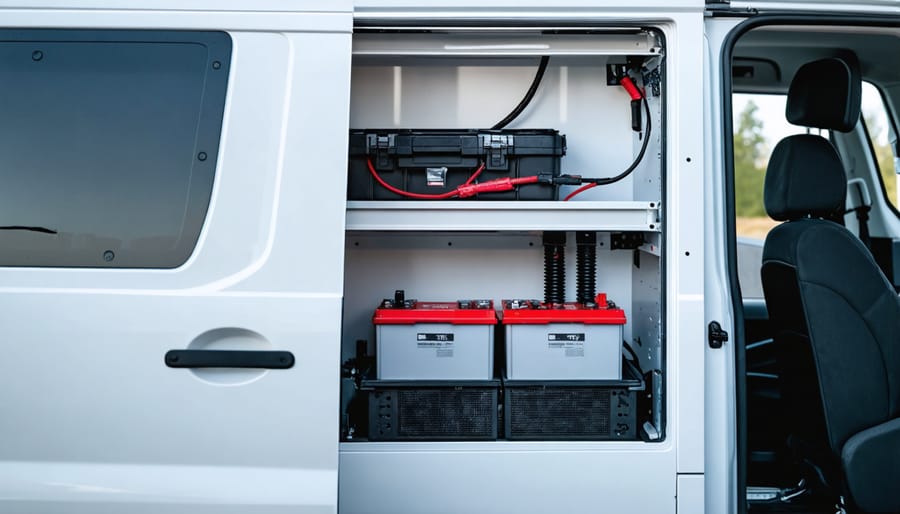

Your battery bank needs to be secured in a well-ventilated compartment that prevents movement during travel. I recommend installing batteries in a dedicated compartment that’s isolated from your living space, preferably with access from both inside and outside the van. The compartment should be lined with non-conductive material and include proper battery tie-downs or brackets.

For lithium batteries, while they don’t off-gas like lead-acid batteries, they still need adequate airflow to prevent overheating. Following proper ventilation techniques is crucial for maintaining optimal battery performance and safety. Install a battery box with ventilation ports or small computer fans to ensure consistent air circulation.

Temperature control is another critical factor. Your battery compartment should be protected from extreme temperatures, as both high heat and freezing conditions can affect battery performance and lifespan. Consider adding insulation around the compartment and ensuring it’s not positioned directly against the van’s exterior wall.

Don’t forget to include temperature sensors in your setup – they’re invaluable for monitoring battery health. Also, keep all battery terminals covered and clearly label positive and negative connections. If you’re using multiple batteries, ensure they’re properly connected in series or parallel with appropriately sized cables and fuses.

System Integration and Testing

Once you’ve gathered all your components, it’s time for the exciting part – bringing your van solar system to life! Start by creating a detailed wiring diagram that maps out how each component connects. This visual guide will be your blueprint throughout the installation process.

Begin with mounting your charge controller in an easily accessible location, as this serves as the brain of your system. Connect your batteries first, which allows the controller to recognize the system voltage. Next, wire your solar panels in series or parallel depending on your setup’s requirements. Remember to keep the panels covered during installation to prevent live current flow.

When connecting components, always use appropriately sized cables and maintain proper polarity (red for positive, black for negative). Double-check each connection before moving forward – a single reversed wire can damage your equipment. Install fuses or circuit breakers between major components for safety and protection against power surges.

Before connecting your inverter to the system, ensure all solar components are working correctly. Use a multimeter to verify proper voltage readings at each connection point. Once confirmed, integrate the inverter and connect it to your battery bank.

Now comes the crucial testing phase. Start with a basic functionality test: verify that your panels are generating power, your charge controller is regulating properly, and your batteries are accepting a charge. Monitor the system for at least 24 hours under various conditions.

Test your power draws systematically. Begin with small loads like LED lights or phone chargers, then gradually add larger appliances. Keep an eye on your battery voltage levels and charging patterns. If you notice any unusual behavior, such as rapid voltage drops or charging inconsistencies, troubleshoot before adding more loads.

Remember to document all your testing results and take photos of your setup – this information will be invaluable for future maintenance or upgrades. Many van lifers in our community recommend running your system for a week before embarking on any long trips, giving you time to identify and address any potential issues.

Maintenance and Troubleshooting

Regular Maintenance Schedule

Keeping your van’s solar power system in top condition requires regular solar system maintenance. I’ve found that following a simple monthly checklist helps prevent most common issues and extends the life of your components.

Start by inspecting your solar panels for dust, debris, or bird droppings. A gentle wipe with a soft cloth and mild soap solution is usually sufficient. Check all mounting hardware and ensure panels haven’t shifted during travel.

Battery maintenance is crucial – inspect terminals monthly for corrosion and ensure connections remain tight. Monitor your battery’s water levels if you’re using flooded lead-acid batteries, and top up with distilled water when needed.

Every three months, verify that your charge controller displays are functioning correctly and review your system’s performance data. Look for any unusual patterns in charging or power consumption.

Don’t forget to inspect all wiring connections twice a year. Look for signs of wear, especially where cables might rub against surfaces during transit. Check your inverter’s cooling fans and vents for dust buildup.

Remember to keep a maintenance log – it’s invaluable for tracking system performance and identifying potential issues before they become problems. I learned this the hard way after missing some early warning signs in my first van build!

Common Issues and Solutions

Even the best-designed van solar systems can encounter issues, but most are easily fixable. A common problem is reduced power output, often caused by dirty panels or shade from nearby trees or buildings. Regular cleaning and strategic panel placement can resolve this. If your batteries aren’t holding charge, check for loose connections or corroded terminals – a quick cleaning with a wire brush usually does the trick.

System monitoring devices showing unusual readings? First, verify all connections are secure and inspect wiring for any damage. Sometimes, a simple reset of your charge controller can resolve erratic readings. If your inverter keeps shutting off, it’s typically due to either low battery voltage or attempting to run too many appliances simultaneously. Try reducing your power load and ensure your batteries are adequately charged.

For those experiencing charging issues during cloudy weather, consider adding a smart battery isolator that allows your van’s alternator to supplement solar charging. Strange noises from your inverter usually indicate a cooling fan issue – check for dust buildup and clean as needed.

Remember, most issues stem from either loose connections or improper system sizing. When in doubt, double-check your wire connections and review your power consumption calculations.

Embarking on your van solar power journey is an exciting step toward energy independence and sustainable living. Throughout this guide, we’ve explored the essential components, from selecting the right solar panels to choosing appropriate batteries and inverters. Remember that your system’s success lies in careful planning, accurate calculations, and proper installation techniques.

Whether you’re a weekend warrior or full-time van lifer, a well-designed solar setup can transform your mobile lifestyle. Start small if you’re feeling overwhelmed – even a basic system can significantly enhance your off-grid capabilities. As your confidence grows, you can always expand your setup to meet increasing power needs.

Don’t forget to regularly maintain your system and monitor its performance. Clean panels, secure connections, and proper battery maintenance will ensure years of reliable service. The initial investment and effort will pay off through reduced energy costs and the freedom to explore without worrying about power availability.

Join the growing community of van solar enthusiasts and share your experiences. Your journey might inspire others to embrace sustainable energy solutions. Ready to get started? Gather your components, follow our installation guidelines, and take that first step toward solar-powered adventures!
