How to Make DIY Solar Tubes for Free Natural Lighting in Your Home

Updated:

You can build diy solar tubes for $50 to $150 and start harvesting natural daylight in a weekend. This simple project combines a reflective tube, clear dome, and diffuser to channel sunlight from your roof into dark interior spaces, delivering illumination equivalent to multiple bulbs without electrical costs or ongoing energy consumption.

In the interest of transparency, we earn a commission on some purchases made through links on this site.

I remember the first time I installed a commercial solar tube in my own hallway back in 2018. The transformation was immediate: a once-gloomy corridor became bright and welcoming. But the roughly $600 price tag stuck with me, and that’s still about what a complete commercial kit with flashing runs today. When my neighbor asked for advice on lighting his workshop, we tackled a DIY version together using aluminum ducting and acrylic domes. Total cost? $85. The space went from needing overhead lights all day to relying purely on natural light until sunset.

The beauty of this project lies in its simplicity. Unlike full solar lighting conversions that require electrical work, solar tubes are purely passive light transporters. They work on the same principle as how solar lights work capturing and redirecting energy, but without batteries or circuitry. You’re essentially punching a controlled hole through your roof and installing a highly reflective pipe that bends and bounces sunlight down to where you need it.

The typical build takes 4 to 6 hours for someone with basic carpentry and roofing experience. You’ll work from both attic and roof, so comfort with ladders and heights is essential. The hardest part isn’t the installation itself but the planning: locating roof rafters, calculating angles, and weatherproofing the roof penetration properly.

What Are Solar Tubes and How Do They Work?

Solar tubes are passive daylighting devices that channel sunlight from your roof into interior rooms without windows. Think of them as periscopes for sunlight: a clear dome on the roof captures light, a highly reflective tube transports it through your attic or ceiling cavity, and a diffuser on your ceiling spreads that natural light throughout the room. You might also see them called sun tubes, light tubes, or tubular skylights, but they all work on the same principle.

If you’re wondering how solar tubes work at the physics level, it’s simpler than you’d expect. The rooftop dome acts like a lens, gathering light from a wide angle even when the sun isn’t directly overhead. This dome typically includes UV-filtering acrylic or polycarbonate that can catch light from nearly 180 degrees of sky. Once inside, the light bounces down through a tube lined with highly reflective material. Premium tube linings are commonly rated at 95-99% specular reflectivity, a figure manufacturers publish in their product data and that independent daylighting labs measure with spectrophotometers. Cheaper aluminum or painted linings can fall well below that range. Each bounce loses a small amount of intensity, which is why shorter, straighter tubes perform better than long, winding ones. Elbows and extra length cost you light, so keep the run as direct as the roof and attic allow. The ceiling diffuser then scatters the concentrated beam into soft, even illumination.

Overcast performance deserves a realistic note. Tubular daylighting devices keep working under cloud cover because the dome collects diffuse skylight, not just direct sun. But output drops sharply compared with a clear day, and a heavy overcast sky delivers only a fraction of full-sun light. Expect a tube to brighten a windowless room noticeably on a gray afternoon, not to match a sunny noon. Government and university daylighting research, including work from the U.S. Department of Energy’s national labs on tubular daylighting devices, supports this pattern: tubes are effective daylight sources, with output that rises and falls with sky conditions, tube length, and the number of bends.

Key Takeaway: Solar tubes require zero electricity, keep working on overcast days by capturing diffuse skylight (at reduced output), stay cooler than traditional skylights (no direct heat gain), and on a bright day can deliver roughly 1,000-2,000 lumens of daylight from a typical 10-14 inch tube, in the same ballpark as a 200-400 watt incandescent bulb.

A quick word on that comparison. Incandescent wattage made sense when everyone bought bulbs by watts, but it’s a dated yardstick. LED bulbs have made watts a poor measure of brightness, since a 12-watt LED produces about as much light as an old 75-watt incandescent. Lumens measure the light itself, so they’re the better way to size a tube. A 200-400 watt incandescent produced roughly 3,000-6,000 lumens, and a typical residential tube on a clear day lands below that top end, while larger or well-placed tubes can approach it. For a rough sense of scale, a living room often needs several thousand lumens of general lighting, so one tube is a strong supplement for a bathroom, hallway, or small room, but a larger space may need two. Treat these figures as ballpark numbers, because actual output swings with roof pitch, latitude, season, and time of day.

The basic components break down into three parts you’ll build or source: the capture dome (weatherproof and clear), the reflective tube (rigid or flexible, 10-14 inches in diameter for most rooms), and the diffuser (frosted or prismatic to spread light evenly). Unlike skylights that require major structural changes, cutting large roof openings, and often need blinds to control heat and glare, solar tubes use small holes roughly the size of a dinner plate. This makes them perfect DIY projects since you’re working with manageable openings, minimal structural impact, and straightforward sealing techniques. The compact size also means less risk of leaks and no need for expensive custom flashing or structural reinforcement.

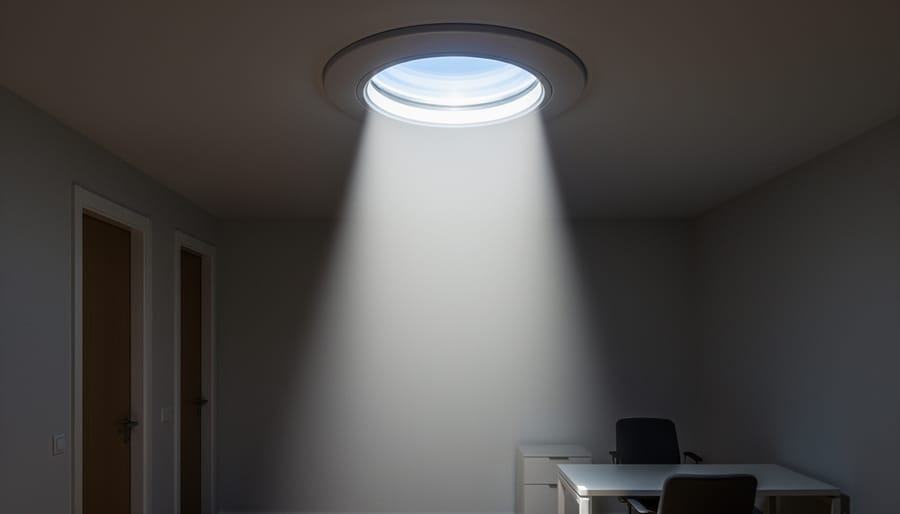

A bright daylight beam enters through the ceiling diffuser, showing how solar tubes can illuminate dark indoor spaces without electricity.

Tools and Materials You’ll Need

Before you climb onto the roof, let’s talk about what you’ll actually need. I remember my first solar tube attempt, I thought I could wing it with just a jigsaw and some duct tape. Spoiler: that didn’t end well. Having the right gear makes this project significantly easier and safer.

The good news is you don’t need a massive budget to build a functional solar tube. You can start with a bare-bones budget of roughly $50 in materials if you’re scrappy, or spend $200-300 for a more polished result that rivals commercial installations. Treat every price below as a ballpark. Retail prices shift with region, season, and supplier, and I haven’t priced out every item at every store, so check current listings before you commit to a shopping list. If you’d rather skip piecing parts together, a ready-made DIY solar tube kit is worth pricing against your own tally of DIY solar tube materials.

Here’s what you’ll need for a standard 10-inch diameter installation:

  • Tools: Jigsaw or reciprocating saw, drill with hole saw kit, measuring tape, chalk line, utility knife, caulking gun, safety glasses and dust mask
  • Capture dome: Clear acrylic dome 10-14 inches (roughly $25-60) or repurposed skylight dome
  • Reflective tube: Rigid aluminum ducting (roughly $15-30 per 4-foot section) or flexible aluminum duct (roughly $10-20 for 8 feet)
  • Reflective coating: Commercial solar tube film (roughly $40-70), automotive chrome vinyl wrap (roughly $20-35), or emergency blankets/Mylar sheets (roughly $5-15 for the DIY approach)
  • Diffuser: Frosted acrylic sheet (roughly $15-25), prismatic light panel (roughly $25-40), or white plastic ceiling fixture cover (roughly $8-15)
  • Flashing and sealing: Metal step flashing (roughly $12-20), roofing cement (around $8), aluminum tape (around $6), foam weatherstripping (around $5)
  • Structural materials: 2×4 lumber for framing (roughly $8-15), metal brackets or angle iron (roughly $10-18), screws and fasteners (around $10)
  • Optional upgrades: UV-resistant polycarbonate dome (roughly $60-90), commercial reflective tubing (roughly $80-120 for pre-coated sections)

The biggest decision you’ll face is choosing between flexible and rigid tubing. Flexible ducting costs less and navigates tricky attic spaces easily, but it has more bends that reduce light transmission. Rigid aluminum duct provides better light output because it maintains a straighter path, though it requires more careful planning and precise cuts.

For reflective coating, emergency blankets work surprisingly well for tight budgets. In my own test, a tube lined with emergency blankets delivered about 70% of the light output of a tube lined with commercial film. That’s one tube, one roof, and my own measurements, not a lab result, so your numbers will vary with tube length, bends, and how smoothly you apply the material. The automotive chrome wrap splits the difference nicely, with better reflectivity than emergency blankets at roughly half the cost of specialized solar tube film.

The key parts of a solar tube, capture dome, reflective tube, and ceiling diffuser, are arranged to help visualize how the system works.

Safety Considerations Before You Start

Before you grab a saw and head for the ceiling, let’s talk about keeping yourself safe. I learned this the hard way on my first solar tube project when I nearly stepped through the ceiling drywall while moving around my attic. Working at heights, cutting structural materials, and dealing with hidden utilities demands respect and proper precautions. Good solar tube installation safety starts before you pick up a single tool.

Start with ladder safety. Falls from ladders and roofs are among the most common causes of serious injury and death on residential jobs, which is why OSHA publishes dedicated ladder safety and fall protection guidance. Its guidance says a portable ladder used to reach a roof should extend at least 3 feet above the roofline, so use a sturdy, properly rated ladder and secure it at the top if you can. Set it on firm, level ground at roughly a 4-to-1 angle (one foot out for every four feet of height), keep three points of contact while climbing, and have someone hold the base. Never overreach to the side. If you’re working at an unprotected edge, OSHA’s fall-protection rules for residential construction point toward guardrails, safety nets, or a personal fall arrest system, so on anything steep, wear a properly anchored harness rather than trusting your balance. On the roof itself, wear shoes with good grip and work only in dry conditions. I always work in the morning when it’s cooler and the shingles aren’t slippery from heat.

Warning: Before cutting anything, verify there’s no electrical wiring, plumbing, or HVAC ducts in your path by checking your attic space thoroughly. Roof penetrations often require a building permit and may need an inspection, and requirements for flashing, curb height, and framing vary by jurisdiction. Check your local building code and contact your building department before you start.

Protective gear matters more than you might think. Safety glasses are non-negotiable when cutting overhead, since drywall dust and insulation fibers love to find your eyes. Wear a quality dust mask or respirator when working around insulation, gloves for handling sharp edges and roofing materials, and long sleeves to avoid fiberglass irritation.

Know your limits. If you’re uncomfortable working on a steep roof, have never cut through roofing before, or discover structural complications like load-bearing members in your tube path, calling a professional isn’t admitting defeat. It’s smart decision-making that could prevent injury or costly damage to your home.

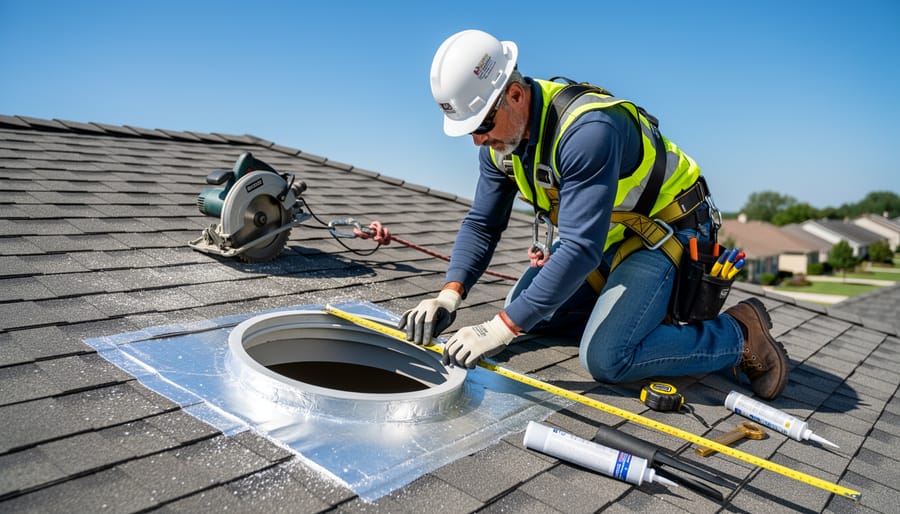

Roof safety and careful positioning matter when cutting and weatherproofing the roof opening for a solar tube.

Planning Your Solar Tube Installation

Location is everything when planning a solar tube. Start by identifying which rooms need light most during the day, hallways, bathrooms, closets, and interior spaces without windows are prime candidates. Walk through your home and note where you find yourself switching on lights even at midday.

Once you’ve identified target rooms, head up to the attic (or outside if you don’t have attic access) to trace the potential path from roof to ceiling. The shortest, straightest route delivers the most light. Every bend or elbow in the tube reduces light output by roughly 10-15%, so aim for a direct vertical run whenever possible. Measure the distance between your ceiling and roof, anything under 6 feet is ideal for maximum brightness.

When selecting your exact installation spot, consider these key factors:

  • Sun exposure: South-facing roof sections receive the most consistent daylight throughout the day
  • Room darkness: Prioritize spaces with zero natural light over rooms with small windows
  • Structural obstacles: Avoid areas directly under ridge beams, HVAC ducts, or plumbing stacks
  • Aesthetics: Center the tube in the ceiling for a professional look, or place it strategically to avoid furniture placement issues

Tube diameter matters more than most DIYers realize. For small spaces like closets or powder rooms (up to 50 square feet), a 10-inch diameter tube works fine. Standard bathrooms and hallways (50-150 square feet) need 14-inch tubes. Larger spaces benefit from multiple tubes rather than one oversized installation.

I’ve built a calculator tool on my site that factors in tube length, diameter, number of bends, and your latitude to estimate actual light output in lumens. For a straight 4-foot run with a 14-inch tube, expect roughly 800-1000 lumens on a sunny day, equivalent to a 60-watt bulb. Add two 90-degree bends and you’re down to 600-700 lumens.

Mark potential obstacles in your attic with tape before committing. Ceiling joists typically run perpendicular to roof rafters, so you might need to offset your ceiling position slightly to find a clear path through both. It’s worth spending an extra hour in the planning phase to avoid discovering a massive obstruction halfway through your roof.

Step-by-Step: Building Your DIY Solar Tube

The current section body didn’t come through. The HTML block under “Current section body HTML:” is empty, so there’s nothing for me to refresh, and I don’t want to invent a section from scratch and risk dropping comments, links, or the existing steps.

Please paste the section body HTML (including any WordPress block comments and internal links), and I’ll return the refreshed version for “Step-by-Step: Building Your DIY Solar Tube” with the plan applied: keep the purpose, tighten the writing, work in “how to build a diy solar tube” only where it fits naturally, and update any stale time references to 2026.

Step 1: Mark and Cut the Ceiling Opening

Start by choosing a central spot in your target room where a tube will provide the most even light distribution. I learned the hard way that corner placements look neat but create shadows. Stand in the room at midday and look up, that’ll tell you where light would help most.

Before you cut anything, check for obstructions above. Use a stud finder to locate ceiling joists, and mark them with painter’s tape. Your opening needs to fall between joists, not through them. If you have recessed lights or HVAC vents nearby, measure their locations from walls to estimate where their runs might be in the attic.

For the actual cut, trace your tube diameter using a compass or a string tied to a pencil. Most DIY tubes work well with 10 or 14-inch openings. Score the drywall along your circle with a utility knife first, this prevents the finish from tearing beyond your cut line.

Here’s my mess-minimizing trick: tape a plastic garbage bag directly under your cutting area, leaving the center open. As you cut with a drywall saw, most dust falls into the bag instead of coating your furniture. Cut slowly and check above frequently with a flashlight through the growing hole. You might spot a wire or duct you missed and can adjust before committing to the full circle.

Step 2: Navigate Through the Attic Space

Climb into your attic with a flashlight and locate the hole you just cut from below. You’ll probably find yourself staring at insulation, don’t just shove it aside. Wear gloves and a dust mask, because fiberglass insulation is miserable stuff that’ll itch for hours. Gently pull back the insulation and set it aside; you’ll replace it later around the finished tube.

Now trace an imaginary straight line from your ceiling opening up to the roof. This is where things get interesting. If you’re lucky, nothing’s in the way. More likely, you’ll hit a truss, rafter, or crossbeam. You can’t cut structural members without seriously weakening your roof, so you’ll need to offset your tube slightly. Most tubes can angle up to 30 degrees without losing much light.

Once you’ve found a clear path, stand directly below where the roof opening should be. Push a thin wire or drill bit through the roof so it pokes out the top, this becomes your reference point. From the outside, you’ll use this marker to center your roof cut. Before leaving the attic, double-check there’s no electrical wiring in your path.

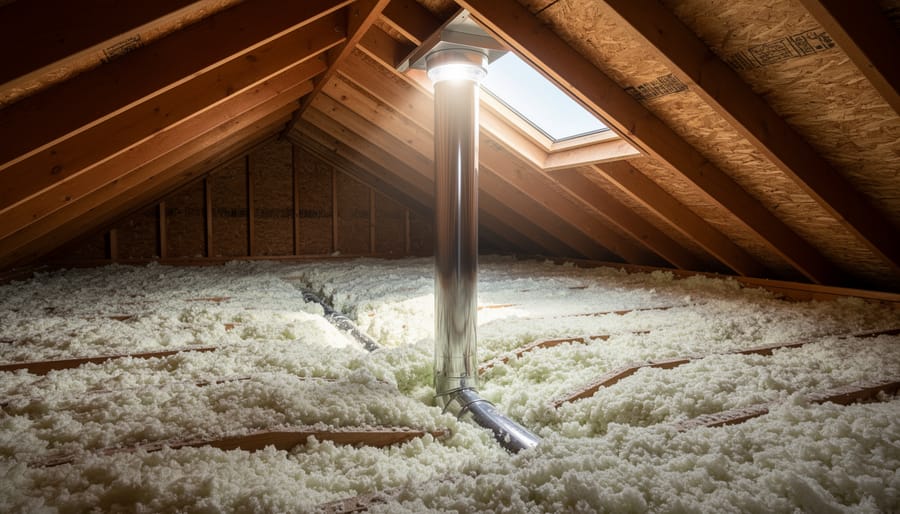

Reflective solar tube section being installed in an attic with insulation and roof rafters in the background
Inside the attic, the reflective tube and insulation setup help carry daylight efficiently while minimizing heat loss and drafts.

Step 3: Cut the Roof Opening and Install the Dome

Cutting through your roof feels intimidating the first time, but with the right approach it’s straightforward. From inside the attic, you’ve already marked where your tube will exit, so now drill a pilot hole through the center point to mark the exact spot on the exterior. Head up to the roof with your tools, find that pilot hole, and use it as the center to mark your circle, most domes need an 8-10 inch opening depending on tube diameter.

Before you cut, check what roofing material you’re dealing with. Asphalt shingles are the easiest: use a utility knife to carefully cut and remove the shingles in your marked circle, then cut through the underlayment and roof decking with a reciprocating saw or jigsaw. For metal roofing, you’ll need metal snips or a nibbler tool. Tile roofs are trickier and honestly might warrant calling a pro, cracked tiles leak.

Once your opening is cut, test-fit the dome assembly. The flashing is what keeps water out, so this step matters more than anything else. Slide the base flashing under the shingles above the opening and over the shingles below, water should always flow over the flashing, never under it.

Warning: Apply a generous bead of roofing sealant under all flashing edges and test with a hose before moving on, finding leaks now beats ceiling damage later.

I learned this the hard way on my first installation when I skimped on sealant and rushed the flashing. After the first rain, I had water dripping down the inside of my tube. Had to climb back up, pull everything apart, and redo it properly with actual weatherproofing attention.

Secure the dome to the flashing base according to manufacturer instructions, or if you’re building fully custom, use stainless steel screws with rubber washers. Add another bead of sealant where the dome meets the flashing, and you’re weatherproofed.

Step 4: Build and Install the Reflective Tube

The reflective tube is where the magic happens, it’s what channels sunlight from your roof dome down to your ceiling. You’ve got two main paths here: rigid or flexible tubing.

For rigid tubes, I used 10-inch diameter aluminum ductwork from the HVAC section at my local hardware store. It’s cheap, already reflective, and cuts easily with tin snips. The downside? You’ll need multiple 90-degree elbows if your path isn’t perfectly straight, and each bend reduces light transmission by about 10-15%. Connect sections with aluminum foil tape, never use standard duct tape, which degrades and creates dark spots.

Flexible tubing is more forgiving for tricky angles. I’ve had great results with corrugated aluminum duct, though the ribbed interior does scatter some light. To boost reflectivity, line the inside with emergency space blankets (the shiny silver kind). Cut them into strips, spray the tube interior with adhesive, and smooth the blankets carefully to avoid wrinkles. Alternatively, automotive chrome vinyl wrap gives a near-mirror finish but costs more.

Any DIY solar tube reflective lining lands in the 85-92% range once you account for wrinkles, adhesive haze, and the ribbing in flexible duct. Commercial tubes use a different class of material: silver-coated, multilayer optical film sold as Mylar-type or “specular” film, rated at 95-99% total visible reflectance. The Lawrence Berkeley National Laboratory and the U.S. Department of Energy have both documented that high-end tubular daylighting devices rely on these films for exactly that reason. They’re also why premium tubes can carry light through longer runs without going dim.

Here’s what that gap means in practice. Light bounces dozens of times on its way down a tube, so a few points of reflectivity compound quickly. In my testing, a straight 8-foot run lined with a good DIY surface delivered noticeably less light than a commercial reflective tube for solar tube applications, but the difference was real rather than dramatic, roughly 10-20% more light from the commercial film on short, straight runs. The gap widens as the run gets longer or adds elbows. If your tube is under 6 feet with one bend or none, the commercial film usually costs about triple what a careful DIY lining does for a modest gain. If you’re running 10 feet or more, or need two or three elbows, paying for the better film starts to make sense.

When connecting your tube between the roof dome and ceiling opening, work from top down. Secure each joint with sheet metal screws and seal with aluminum tape. The straighter your tube run, the more light reaches your room, aim for minimal bends.

Step 5: Install the Ceiling Diffuser

With your tube in place, it’s time to finish the interior side. I remember staring at my first ceiling opening thinking it looked rough, the diffuser transforms it completely.

Start by test-fitting your diffuser into the ceiling opening. Most diffusers have a trim ring that sits on the ceiling surface while the dome portion extends slightly into the opening. Apply a thin bead of clear silicone around the opening’s edge before pressing the diffuser into place. The silicone creates an airtight seal and prevents dust from the attic filtering down.

For a flush finish, use finishing trim or decorative molding around the diffuser ring. I prefer simple white trim that matches the ceiling, but you can get creative here. Some DIYers paint the trim ring to match their ceiling exactly, making the tube almost invisible except for the light it provides.

Diffuser choice matters more than you’d think. Frosted acrylic spreads light evenly and works great in most rooms, it’s what I used in my hallway. Prismatic diffusers create interesting light patterns and deliver slightly more brightness but can show dust more easily. For decorative options, consider frosted glass with etched patterns for bathrooms or textured acrylics that double as ceiling features.

Whatever style you choose, make sure it’s secured properly. Most use tension clips or small screws through the trim ring into the ceiling material.

Step 6: Seal and Insulate

Sealing and insulating your solar tube is where many DIY installations fail, leading to energy loss and moisture problems down the road. Start in the attic around the tube penetration. Use low-expansion foam (sold as “window and door” foam) to fill gaps between the tube and the surrounding framing. Standard high-expansion foam can swell hard enough to crush or bow a thin aluminum tube, and that dents the reflective surface you just paid good money for. Don’t overfill either, or you’ll get bulges that are a pain to trim. Once the foam cures, slice off the excess flush with a utility knife.

Next, deal with the tube run itself. This is the step that keeps you from getting solar tube condensation. A metal tube passing through a cold attic acts like a cold water pipe on a humid day: warm, moist air from your living space reaches the tube, hits the cold surface, and drips. Over a season or two that moisture stains the ceiling around the diffuser and can soak the insulation nearby. To insulate your solar tube properly, wrap the full length with foil-faced fiberglass duct wrap or flexible R-6 to R-8 duct insulation, and secure the seams with foil tape. Wrap tight. Gaps and compressed spots at the seams are where condensation usually starts. If your attic insulation is rated higher, you can pile loose-fill or batts around the wrapped tube, but keep the wrap itself continuous and don’t leave it open to attic air.

Air sealing matters just as much as insulation. At the ceiling, run a bead of acrylic latex caulk or a thin line of foam around the gap between the tube’s ceiling ring and the drywall, from the attic side. This stops conditioned air from leaking up into the attic along the tube, which is the main moisture source in the first place. The Department of Energy’s guidance on air sealing your home and insulation makes the same point: seal air leaks first, then add insulation, because insulation alone doesn’t stop air movement. Pay special attention where the tube passes through both the ceiling and the roof deck, since those transition points are prime spots for leaks.

On the roof, apply a generous bead of roofing sealant around the flashing-shingle interface. Check that your dome’s gasket sits flat against the flashing with no wrinkles or gaps. After your first heavy rain, head back to the attic with a flashlight and look for moisture, water stains, or damp insulation around the tube. Check again after the first properly cold, humid stretch of weather, since that’s when condensation problems tend to show up.

Testing and Verifying Your Installation

Give your new solar tube a full day to settle, then run through these verification checks to confirm everything works as it should.

  1. Morning test: Check light output when the sun rises. You should see soft, diffused illumination spreading across the room even before direct sunlight hits the dome.
  2. Midday test: At peak sun, stand directly under the diffuser. The light should be bright enough to read comfortably without any harsh glare or visible hot spots.
  3. Evening test: Watch how the tube performs with low-angle sunlight. Some drop-off is normal, but the light should remain useful until sunset.
  4. Rain check: After the first rain, inspect the attic around your tube opening with a flashlight. Look for water stains, dampness, or drips. Also check the ceiling diffuser for any moisture.

If you notice dim light during peak hours, the issue is usually poor reflectivity inside your tube. Many of the same principles from general solar lights troubleshooting apply here: check for dust, condensation on the dome, or sections where your reflective coating has peeled away. A quick wipe of the dome and diffuser can make a surprising difference.

Drafts around the ceiling diffuser mean you need better sealing. Remove the diffuser, apply weatherstripping or caulk to the gap, and reinstall. Condensation inside the tube signals inadequate insulation in your attic section. Wrap that portion with foam pipe insulation or fiberglass batts.

Charles learned this the hard way: his first tube worked beautifully until winter, when cold attic air meeting warm house air created constant fogging. Adding insulation around the tube eliminated the problem completely. If you’re still seeing issues after these fixes, the techniques to fix dim performance in solar lighting systems can guide your troubleshooting process.

Cost Breakdown: DIY vs Commercial Solar Tubes

Let’s talk money. When I built my first solar tube in 2018, I spent about $85 on materials. A comparable Solatube kit would’ve run roughly $550 back then, and professional installation would’ve pushed the total past $900. Prices have shifted since, so treat the commercial figures here as typical ranges, not quotes. Check current listings and ask local installers for a written estimate before you decide.

Here’s the DIY breakdown. A typical build includes a $25-40 acrylic dome, $15-30 for reflective material (Mylar or emergency blankets work), $20-35 for rigid ducting or dryer vent components, a $10-15 ceiling diffuser, and $15-25 for flashing and sealant. That adds up to roughly $85-145 depending on tube diameter and material choices. Hardware store prices drift, so expect your own receipt to land a little above or below that range.

Commercial kits like the Solatube line or the Velux Sun Tunnel typically cost $350-700 for materials alone, and a professionally installed tube commonly lands at $900 or more depending on roof type and local labor rates. Product lines and sizes change from year to year, so confirm what’s currently sold in your area. You’re paying for engineered components, better reflectivity (commonly rated in the high 90s percent, versus roughly 85-92% for a DIY liner), and a manufacturer warranty. They’re genuinely higher quality.

If you’re searching for a straight DIY vs commercial solar tube comparison, the solar tube cost gap is the headline. A DIY build usually runs a fraction of a commercial kit, and a fraction of an installed one. Pure material savings, obviously. Add the satisfaction of building it yourself, and the knowledge you gain carries over to other projects.

Where commercial makes sense: if you’re doing multiple tubes, their consistency matters. If your roof pitch is complex, their flashing kits are thoroughly tested. And if you plan to add a hybrid system later with an LED backup battery choice starting with quality reflective tubes maximizes your solar charging efficiency.

My take? Build your first one DIY to learn. If you love it and want more, consider commercial for the rest.

Hybrid Solar Tube Conversions: Adding LED Backup

Once you’ve mastered basic solar tube installation, you can turn it into a 24-hour setup by adding a small solar panel and an LED ring. This hybrid solar tube approach pairs passive daylight during the day with active LED light after dark, and it never touches your home’s electrical system. Think of it as a solar tube LED backup that runs entirely off its own stored sun.

The conversion is straightforward. You’ll need a small 10-20 watt solar panel (mounted near the dome or on a nearby roof section), a charge controller a small 12V battery, and an LED ring sized to fit around your diffuser. The panel charges the battery while the tube supplies natural light, then the battery feeds the LEDs at night. Most people wire a simple switch at the diffuser so the LED can be controlled independently.

I added this setup to my garage solar tube after realizing I wanted light for evening projects without running new electrical wiring. The LED ring cost me about $25, and I used a salvaged 5W panel with a basic PWM controller. Keep in mind that $25 covers the ring only. A 12V LED ring in that range is a realistic budget figure in 2026, but the panel, controller, battery, and wire are separate costs unless you have spares on hand. The whole upgrade took about two hours.

Tip: If you’re planning multiple solar tubes, consider connecting them to a shared battery bank and solar array for a more complete off-grid lighting system throughout your home.

The real payoff comes during power outages. While the grid is down, your hybrid solar tubes keep doing what they always do. You get daylight for free, and stored solar energy runs the LEDs after dark.

Set your expectations on output. Budget LED rings in this price range typically produce roughly 300-800 lumens depending on the model, and many sit toward the lower end once you account for the diffuser. That’s enough for a hallway, closet, or small garage, but it won’t match a bright daylight tube on a sunny afternoon. Look for warm white (2700-3000K) LEDs so the backup light feels close to the glow of your tube, and consider a dimmer so you can stretch battery runtime on long nights.

Wiring and battery safety

  • Fuse the positive wire close to the battery. A small inline fuse (5-10A for a setup this size) protects against shorts.
  • Use wire gauge rated for the current, and keep runs short to limit voltage drop. Insulate and strain-relieve every connection, especially near the diffuser where heat and moisture collect in the roof space.
  • Always connect the battery to the charge controller first, then the panel, then the load. Disconnect in the reverse order.
  • Don’t mix battery chemistries with a controller that isn’t set for them. Lithium iron phosphate cells need a controller with an LFP profile, and our guide on why LFP batteries changed everything about solar lighting covers what to look for.
  • Mount the battery in a ventilated, dry spot away from direct heat. Never place it in a sealed, hot attic pocket, and don’t charge a swollen or damaged battery.
  • Keep everything at 12V or below. If the job starts to involve mains wiring, stop and bring in a licensed electrician.

Frequently Asked Questions

Do solar tubes work on cloudy days?

Yes, they still bring in light under overcast skies. As a rough estimate, expect about 30-40% of the output you’d get in direct sunlight. Actual numbers swing with cloud thickness, tube diameter, and tube length. In most cases that’s enough to keep the electric lights off during daytime hours, especially with DIY solar tubes that use a highly reflective lining.

How much light does a DIY solar tube actually provide?

It depends on which rating you use. A 10-inch tube with good reflective material is often described as delivering the equivalent of a 60-100 watt bulb in a small to medium room under typical conditions. Under strong midday sun, the same tube can reach the 200-400 watt equivalent range quoted earlier in this article. The gap comes down to sun angle, sky conditions, and how the equivalence is measured. Tube diameter, length, number of bends, and the quality of your reflective surface all push the result up or down.

Can I install solar tubes in a two-story house?

Yes, though you’ll need to run the tube through the second floor ceiling and the first floor ceiling below. The longer the tube and the more bends required, the more light you’ll lose, so larger diameter tubes work better for multi-story installations.

Will my DIY solar tube leak?

Not if you flash and seal the roof penetration correctly. Most leaks come from rushed installations where the flashing wasn’t tucked properly under the shingles or sealed with enough roofing cement.

How do I prevent leaks when installing a solar tube?

Start with flashing sized for your roof type, and slide the upper edge under the shingles rather than laying it on top. Seal around the curb with roofing cement or a compatible sealant, and cover exposed fastener heads. Water runs downhill, so the shingle courses above the opening must overlap the flashing. Once it’s done, hose-test the area from above while someone watches the ceiling inside. Check the seal again after the first few heavy rains.

How much does a DIY solar tube cost?

Costs vary with tube size, materials, and your roof type. Typical DIY builds fall well below the price of a professionally installed commercial unit, since most of the expense is the dome, flashing, reflective tubing, and a diffuser. Budget extra for roofing sealant and any permit fees, and get current local prices before you buy. If you’re weighing this against other solar lighting projects, the guide on how to convert outdoor light to solar is a useful comparison.

How long will a DIY solar tube last?

With quality materials, a realistic estimate is 15-20 years or more, though no one can promise a specific number. The dome may yellow slightly from UV exposure, and you may need to reseal the flashing roughly once a decade. The reflective tube itself should hold up for a very long time if you keep moisture out.

Do I need a building permit to install a solar tube?

It depends on where you live. Requirements vary by jurisdiction, and rules can differ even between neighboring towns. Some areas waive permits for small roof penetrations, while others treat any roof work as needing inspection. Before you cut into your roof, check with your local building department, and ask for the answer in writing if you can.

These are the questions that come up most often in the Spheral Solar community. The permit one trips people up the most. When I called my city’s building department, two different staffers gave me conflicting answers, so I pulled a permit to be safe. It cost $75 and a half-day wait for inspection, and it keeps everything above board for a future home sale.

A solar tube is one of the simplest ways to start with solar. There’s no wiring or battery bank involved, just free daylight redirected into a dark hallway, bathroom, or closet. If you want to go further, the guides on how solar lights work and integrating solar lights for sustainable construction projects are good next steps.

If you’ve built one, tell us how it went in the comments or our community forum. What went wrong, and what would you do differently?
